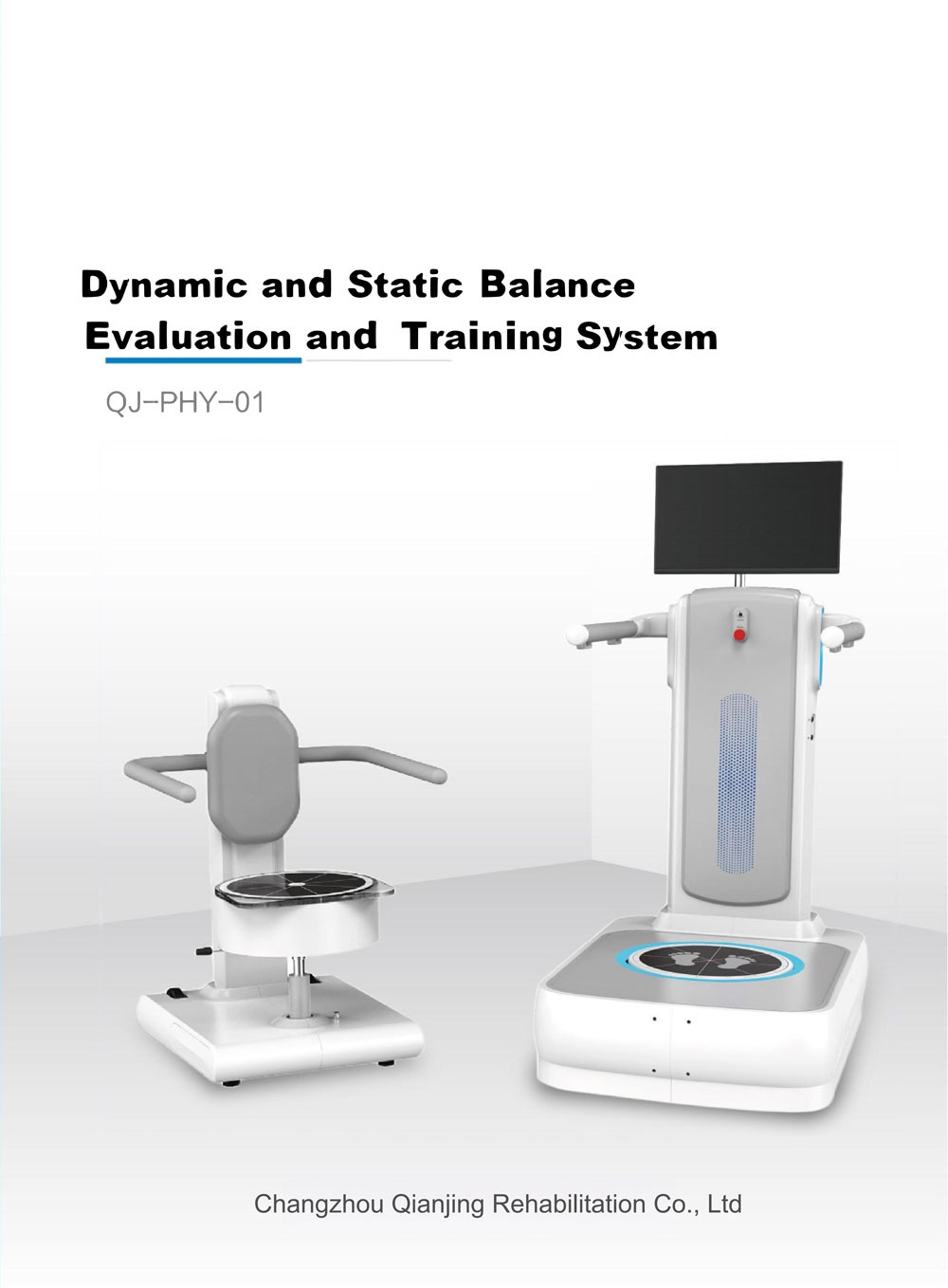

Balance Evaluation and Training System

Balance Evaluation and Training System QJ-PHY-01

Dynamic and static balance evaluation and training system is designed to capture and analyze the human body's static and dynamic balance state in the standing position and dynamic balance state in the sitting position through high-precision sensor technology, data acquisition and processing technology and other technologies to realize the evaluation and training of human balance ability.

Request your customized solution

Balance Evaluation and Training System

Model Series: QJ-PHY-01 / 02 / 03 / 04 / 05

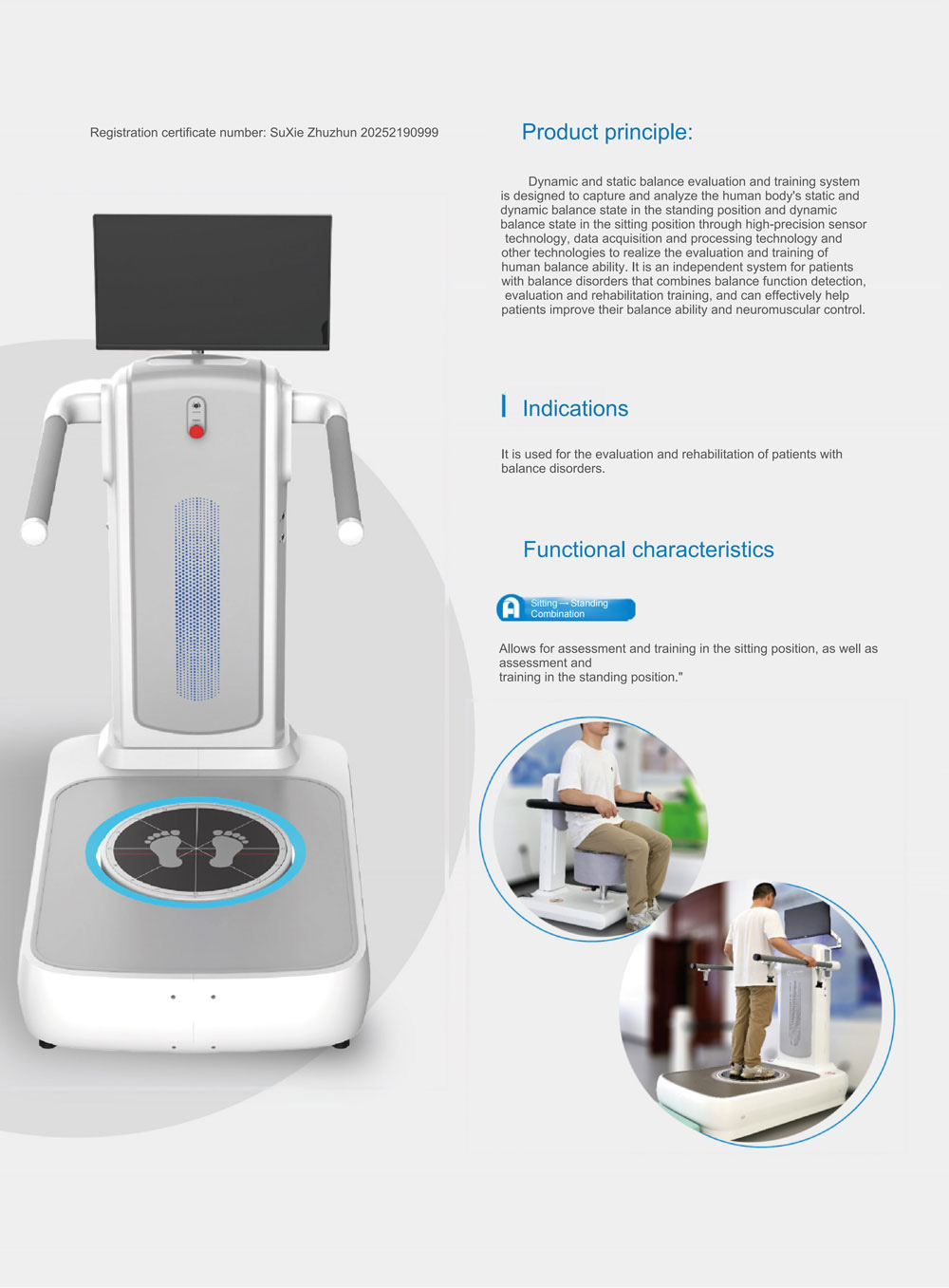

1. Product Principle

The dynamic and static balance evaluation and training system uses high-precision sensor technology and data processing to capture and analyze the human body’s static and dynamic balance state in standing and sitting positions.

It is a professional system for balance disorder patients, integrating detection, evaluation, and rehabilitation training to effectively improve balance ability and neuromuscular control.

2. Indications

Used for the evaluation and rehabilitation training of patients with balance dysfunction.

3. Functional Characteristics

✔ Sitting position balance assessment & training
✔ Standing position balance assessment & training
✔ Three training modes: Static → Dynamic → Passive

Mode	Description
Static	Foot pedals locked; pressure sensors capture center of gravity for balance assessment.
Dynamic	Foot pedals unlocked; user controls tilt angle for active balance training.
Passive	Machine automatically adjusts pedal angle; user actively adjusts center of gravity to maintain balance.

4. Balance Assessment

Scale Assessment

Built-in international universal scales: Berg Balance Scale, Brunel Balance Scale, etc.

Functional Assessment

Static & dynamic assessment includes:

Affected limb weight-bearing threshold
Postural stability
Limits of stability

5. Balance Training

Training Type	Description
Trace Training	Forward, backward, diagonal, circular tracking training.
Weight Training	Unilateral lower limb weight control & directional weight shift training.
Center of Gravity Shifting	Front-back, left-right, fixed-point center of gravity control.
Vestibular & Trunk Training	Head and trunk position detection & real-time feedback control.

6. Fun Games

Category	Description
ACTIVE Games	Single-axis, multi-axis, weight-bearing, cognitive interactive games.
PASSIVE Games	Device-scene linkage; somatosensory balance feedback in simulated scenes.

7. Evaluation & Training Report

Auto-generate & store professional reports
Analyze COG trajectory, length, area, speed, etc.
Support report comparison & historical data review
Support evaluation process playback

8. Safety & Fall Prevention

Protection	Function
Pedal Status Reminder	Light indicator for safe operation
Emergency Stop	One-key emergency stop
Fall Prevention	Dual safety straps + torso angle real-time monitoring
Physio Monitoring	Real-time blood oxygen & pulse; auto-stop when abnormal
