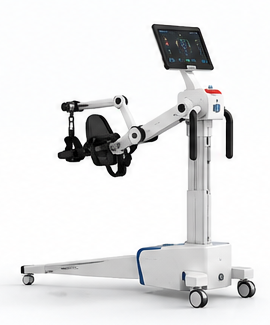

MODEL X001
Sport Ergometer
Lower-limb exercise training.
ActivePassiveAssistedIsokinetic
Comprehensive Assessment
Psychological Assessment
Muscle Strength Assessment
Joint Range Of Motion Assessment
Balance Evaluation and Training System
Multi-joint isokinetic training and testing system
Active & Passive Exercise Equipment
Sport Ergometer Series
Versatile upper- and lower-limb exercise training systems designed for controlled movement training in sports and exercise environments.
FOR SPORTS TRAINING & EXERCISE USE ONLY
Sports Colleges
Athletic Training Centers
Sports Teams
Sports Performance Facilities
Explore Our Models
Three configurations for different exercise training setups, with adjustable speed, resistance and training modes.

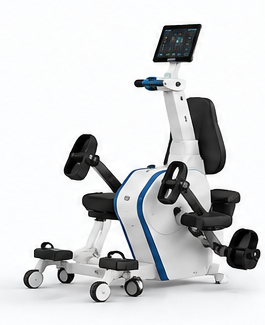

MODEL X002
Dual Sport Ergometer
Upper- and lower-limb exercise training.
ActivePassiveAssistedIsokinetic

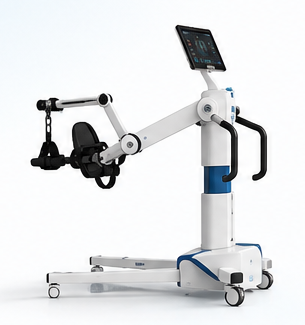

MODEL X003
Sport Ergometer
Lower-limb exercise in a compact configuration.
ActivePassiveAssistedIsokinetic
Product images are illustrative renderings. Refer to manufacturer documentation for exact configuration.
Scope of Application
The Sport Ergometer Series is presented for adult sports training and general exercise applications, including controlled movement practice, adjustable-resistance exercise and physical conditioning in professional sports settings.
Sports Colleges
Structured exercise activities and sports training programs.
Athletic Training Centers
Adjustable upper- and lower-limb movement and resistance training.
Sports Performance Facilities
Exercise sessions focused on movement practice and physical conditioning.
Intended Use Notice
For sports training and exercise applications only. Not intended for medical diagnosis, treatment, or rehabilitation. This statement must be consistent with the manufacturer's approved intended use and product labeling.
Technical Comparison
Model-specific features from the supplied Sport Ergometer Series catalog.
| Specification | X001 | X002 | X003 |
|---|---|---|---|
| Training area | Lower limbs | Upper & lower limbs | Lower limbs |
| Training modes | Active / Passive / Assisted / Isokinetic | Active / Passive / Assisted / Isokinetic | Active / Passive / Assisted / Isokinetic |
| Speed range | 1–60 rpm | 1–60 rpm | 1–60 rpm |
| Resistance | 0–20 levels | 0–20 levels | 0–20 levels |
| Session duration | 1–60 min | 1–60 min | 1–60 min |
| Motor power setting | High / Medium / Low | High / Medium / Low | High / Medium / Low |
| Reverse interval | 0–30 min | 0–30 min | 0–30 min |
| Training games | 6 | 1 | 1 |
| Symmetry display | Bar graph | Numerical percentage | Numerical percentage |
| Data storage | Long-term retention & comparison | Not specified | Not specified |
| User management | Yes | No | No |
Additional catalog features include six-level spasticity settings, spasm detection, emergency stop and overspeed protection. Consult the manufacturer's operating instructions.
Working Environment
The following operating conditions are based on the supplied product information and should be confirmed for each model.
Temperature+5 to +40 °C
Relative humidity≤ 80%
Atmospheric pressure860–1060 hPa
Power supplyAC 220 V ± 22 V, 50 Hz ± 1 Hz
Input power300 VA
