The Arm and Leg Trainer integrates dedicated hardware and software for coordinated upper and lower limb rehabilitation. Key components include a tablet computer, emergency stop switch, upper limb crank, lower limb crank, calf bracket, adjustment knob, pedals, base assembly, front wheels, and wheelchair fixing hook. Designed as versatile Arm and Leg Rehab Equipment, this system can also function as an Arm and Leg Exercise Machine and Upper and Lower Limb Exercise Machine, providing convenient and controlled training for both arm and leg rehabilitation.
The Upper and Lower Limb Rehabilitation Training System is designed for rehabilitation training of patients with joint dysfunction, reduced muscle strength, impaired mobility, and motor function limitations. It provides controlled upper and lower limb exercise for professional rehabilitation settings.
The Arm and Leg Trainer consists of integrated hardware and rehabilitation software. The hardware includes a tablet computer, emergency stop switch, upper limb crank, adjustment knob, calf bracket, lower limb crank, base assembly, pedals, front wheels, and wheelchair fixing hook.
As professional Arm and Leg Rehab Equipment, the system combines motorized assistance, adjustable resistance, and intelligent software to support personalized upper and lower limb rehabilitation training.
Ambient temperature: +5 ～ +40℃
Relative humidity: ≤ 80%
Atmospheric pressure: 860 hPa～1060 hPa
Power supply voltage: AC220 V ± 22 V, power frequency: 50 Hz ± 1 Hz
Input power: 300 VA
The Upper and Lower Limb Rehab Trainer features adjustable training parameters and an easy-to-use touchscreen interface:
1. 10-inch tablet touch operation is friendly for patients with weak muscle strength.
2. Screen inclination is adjustable for patients of different heights.
3. Windows system supports easy software upgrade and smooth running.
4. Directly connect to printer for report printing without external USB drive.
5. Support virtual printing; reports can be exported in multiple formats.
6. Dimensions (L×W×H): 760mm × 720mm × 1130mm.
7. Wheelchair fixing device to prevent backward sliding.
8. Calf bracket height & stroke adjustment: 0–110mm.
9. Upper limb stroke adjustment: 0–175mm.
10. Front moving wheels for easy transportation.
11. Training time: 1–60 min, step 1 min.
12. Passive training speed: 1–60 r/min, step 1 r/min.
13. Motor power: low, medium, high levels.
14. Training resistance: 0–20 levels.
15. Spasticity level: 1–6 levels.
16. Spasm protection can be turned on or off.
17. Training direction: manual & automatic reversing.
18. Automatic reversing time: 0–30 min.
19. Default speed: 10 r/min.
20. Speed change rate: 0.5 r/s².
21. Overspeed protection: stop when speed exceeds 100 r/min.
22. Spasticity response time: 5s.
23. Working noise: ≤60dB(A).
| Model | AP002 | AP004 | AP006 | AP007 | AP008 | AP009 | AP0010 | AP0011 |
|---|---|---|---|---|---|---|---|---|
| Application | Adult | Adult | Adult | Adult | Adult | Adult | Adult | Adult |
| Training Part | Arm & Leg | Arm | Leg | Leg | Arm & Leg | Arm | Leg | Leg Beside Bed |
| Training Mode | Active, Passive, Assisting, Isokinetic | Active, Passive, Assisting, Isokinetic | Active, Passive, Assisting, Isokinetic | Active, Passive, Assisting, Isokinetic | Active, Passive, Assisting, Isokinetic | Active, Passive, Assisting, Isokinetic | Active, Passive, Assisting, Isokinetic | Active, Passive, Assisting, Isokinetic |
| Arm & Leg Simultaneously | YES | NO | NO | NO | YES | NO | NO | NO |
| Games No. | 6 | 6 | 6 | 6 | 1 | 1 | 1 | 1 |
| Speed Range | 1～60 r/min | 1～60 r/min | 1～60 r/min | 1～60 r/min | 1～60 r/min | 1～60 r/min | 1～60 r/min | 1～60 r/min |
| Resistance Level | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 |
| Training Time | 1～60 min | 1～60 min | 1～60 min | 1～60 min | 1～60 min | 1～60 min | 1～60 min | 1～60 min |
| Spasticity Level | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
| Motor Power | High-Mid-Low | High-Mid-Low | High-Mid-Low | High-Mid-Low | High-Mid-Low | High-Mid-Low | High-Mid-Low | High-Mid-Low |
| Reversing Time | 0-30min | 0-30min | 0-30min | 0-30min | 0-30min | 0-30min | 0-30min | 0-30min |
| Protection Functions | Spasm protection, Emergency stop, Overspeed protection, RPM warning | |||||||
| Symmetry Display | Bargraph | Bargraph | Bargraph | Bargraph | Numerical percentage | Numerical percentage | Numerical percentage | Numerical percentage |
| Data Storage | YES | YES | YES | YES | NO | NO | NO | NO |
| User Management | YES | YES | YES | YES | NO | NO | NO | NO |

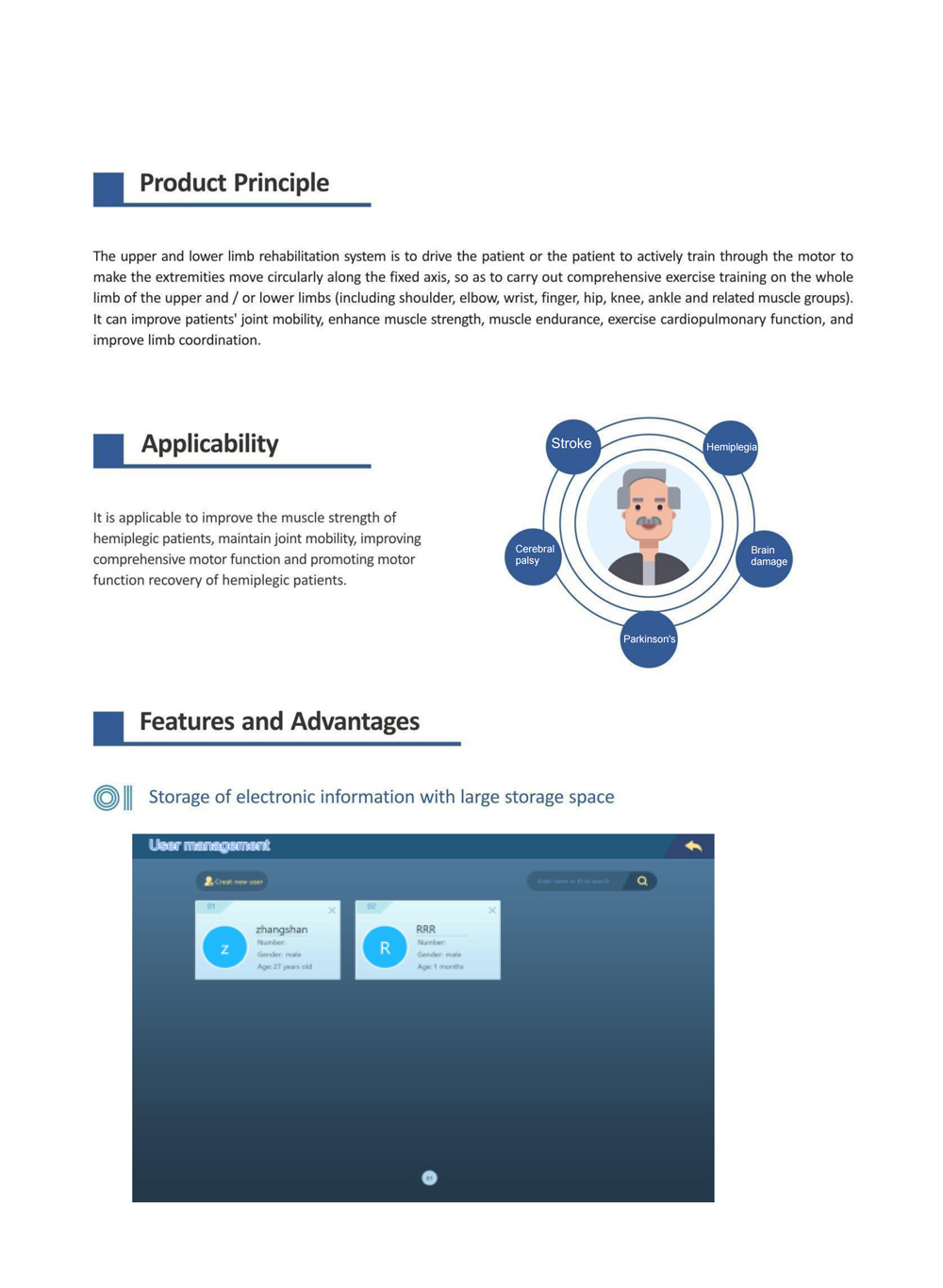

The Upper and Lower Limb Rehabilitation Training System uses motor-driven or patient-initiated movement to provide repetitive circular limb exercise. Depending on the selected training mode, the motor can provide passive or assisted movement, while patients with sufficient strength can participate in active or isokinetic training.
This design makes the system suitable for progressive upper and lower limb rehabilitation and coordinated arm and leg exercise.
The Upper and Lower Limb Rehab Trainer can be used to support muscle strength training, maintain joint mobility, and promote motor function recovery for patients with:
Stroke
Hemiplegia
Brain Damage
Parkinson's disease
Cerebral palsy
The Arm and Leg Rehab Equipment supports digital patient management, including:
User registration and profile creation
Patient search by name or ID
User information management
Training record storage
The Upper and Lower Limb Rehabilitation Trainer provides different modes according to the patient's muscle strength:
Passive training: for muscle strength 0–1
Active training: for muscle strength 3–4
Assisted training: for muscle strength 1–2
Isokinetic training: for muscle strength 4–5
Automatic switching between active and passive modes
These modes allow the Arm and Leg Trainer to support progressive rehabilitation from passive movement to active exercise.
6 training games: Air journey, Turntable adventure, Frog playing lotus leaf, Aircraft battle, etc.

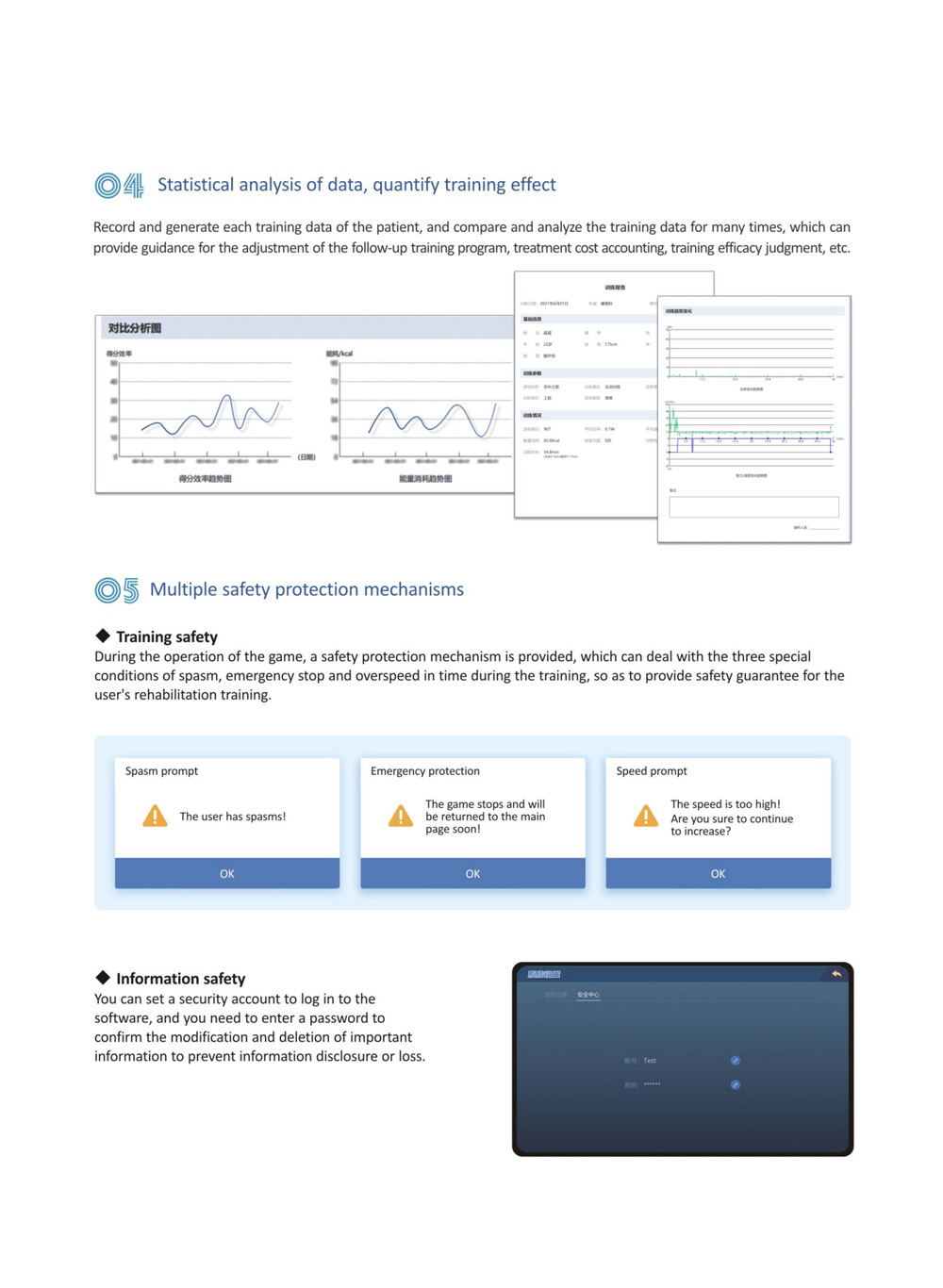

Record training data and support comparative analysis for treatment evaluation.
The Arm and Leg Exercise Machine incorporates multiple safety functions, including:
Spasm prompt, emergency stop, overspeed warning
Account login & password protection for information security
Upper and lower limbs train simultaneously to improve coordination and save time.

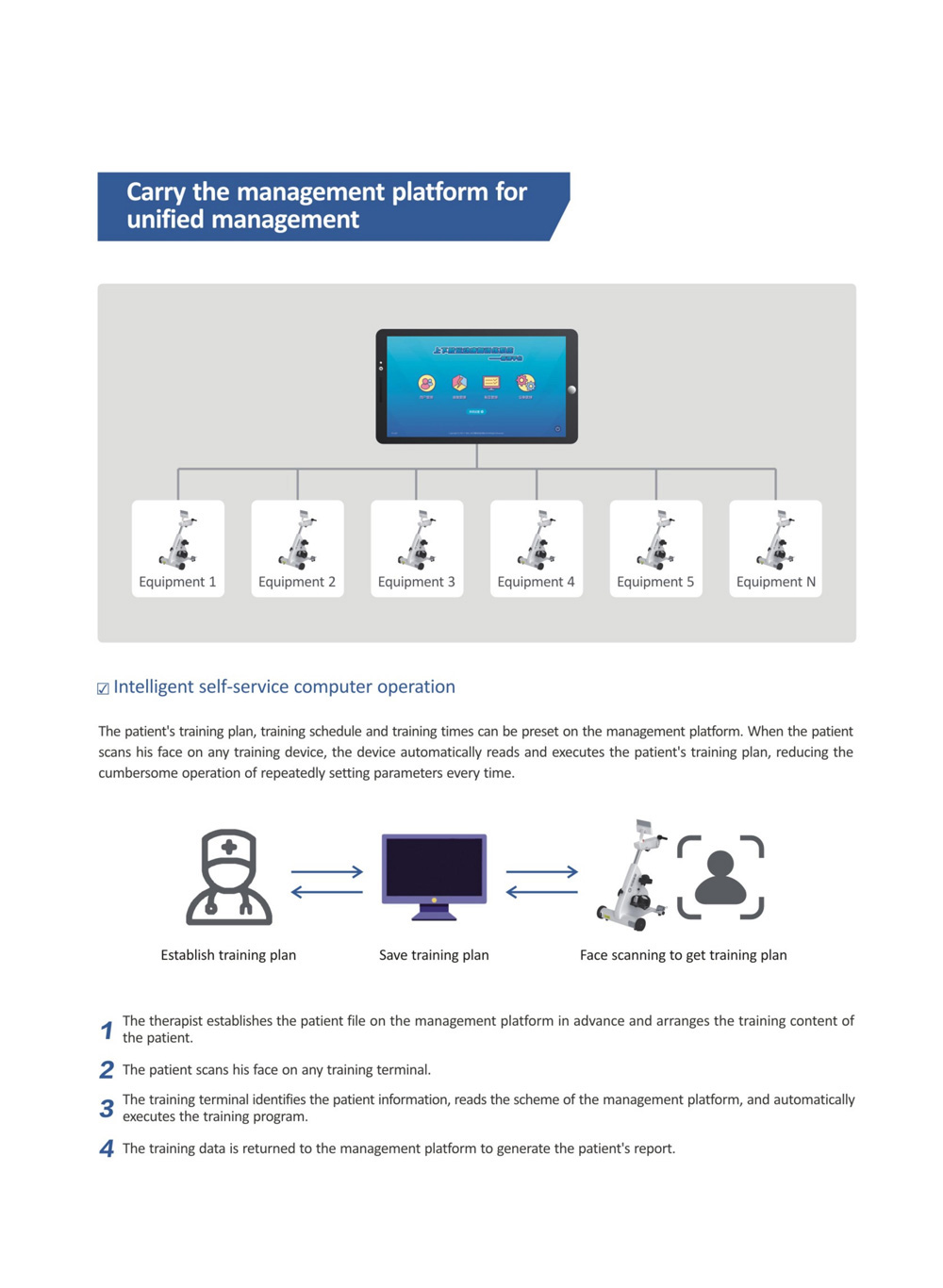

The Upper and Lower Limb Rehabilitation Training System integrates patient management, training plans, and data analysis into one digital platform.
Therapists can create patient profiles and customized training plans. Patients can log in through face recognition, and the system can automatically load the assigned training program and record training data.
Key intelligent functions include:
Face recognition and user authorization
Customized progressive training programs
Automatic training plan execution
Training data upload and report generation

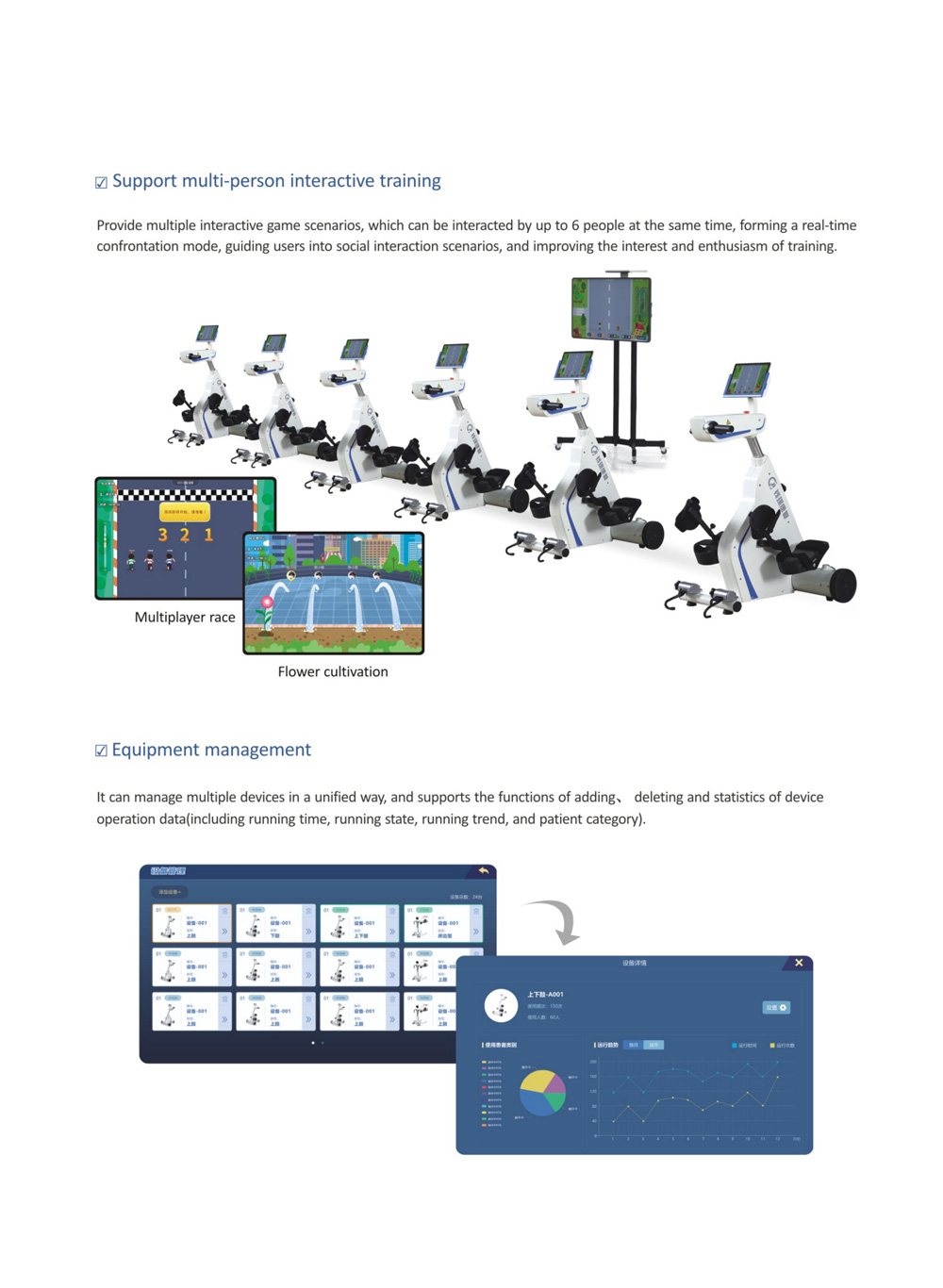

Multiplayer interactive training for up to 6 users
Unified device management
Training data statistics and analysis
Upper & Lower Limb Model: The Arm and Leg Trainer features a hand fixing strap and wheelchair anti-slip device to provide stable positioning during coordinated upper and lower limb training.
Beside-bed Lower Limb Model: Electric lifting, manual telescopic arm, foot strap, stable floor support, suitable for hospital beds, physiotherapy beds and PT beds.

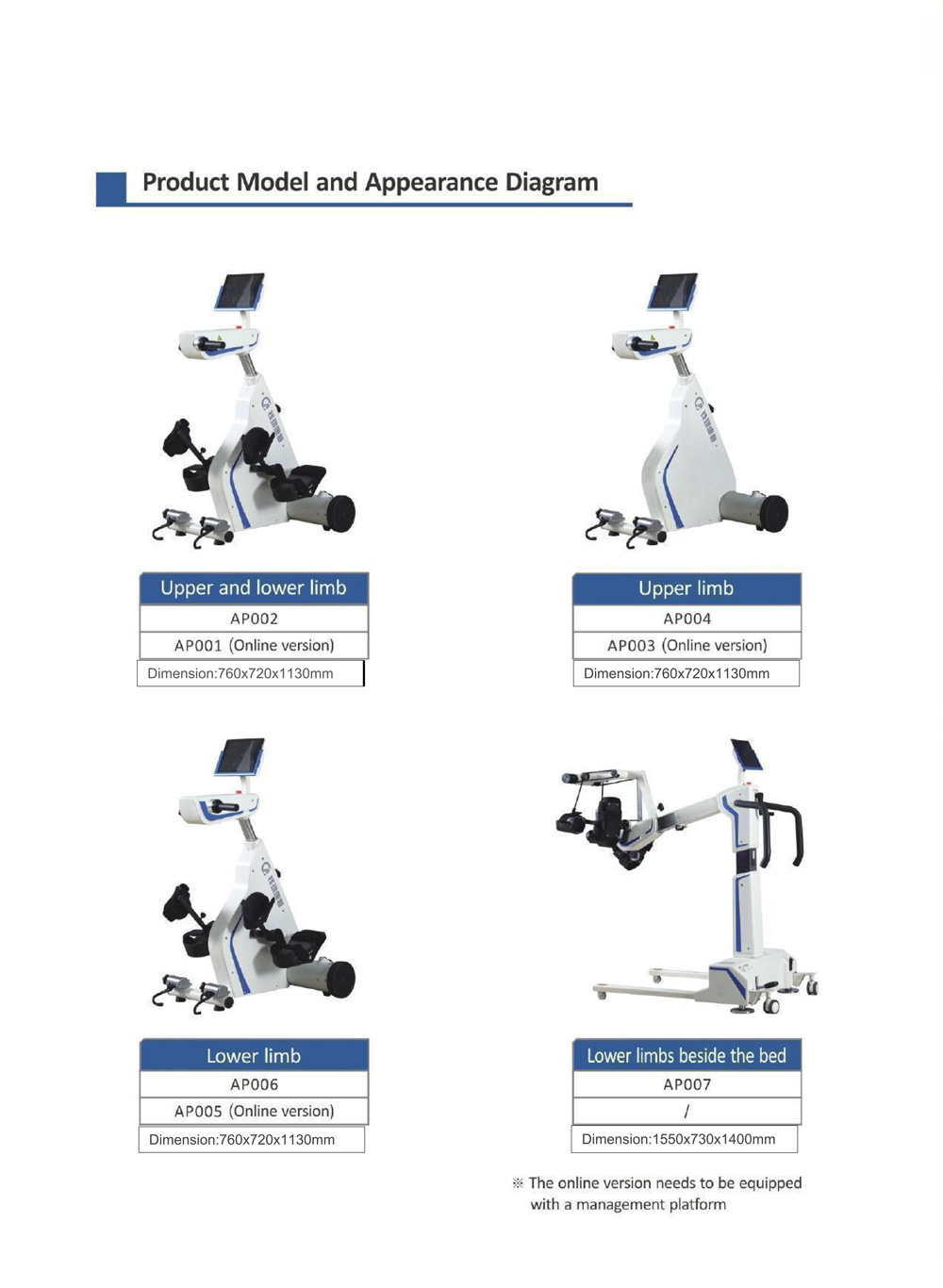

| Type | Model | Dimension (mm) |
|---|---|---|
| Upper & Lower Limb | AP002, AP001(Online), AP008, AP008(Online) | 760×720×1130 |
| Upper Limb | AP004, AP003(Online), AP009, AP009(Online) | 760×720×1130 |
| Lower Limb | AP006, AP005(Online), AP0010, AP0010(Online) | 760×720×1130 |
| Beside-bed Lower Limb | AP007, AP0011 | 1550×730×1400 |
The Upper and Lower Limb Rehabilitation Training System is designed for professional rehabilitation of patients with impaired motor function, reduced muscle strength, or joint mobility limitations. It supports upper limb, lower limb, and coordinated arm-and-leg training for hospitals, rehabilitation centers, and physical therapy facilities.
The Upper and Lower Limb Rehab Trainer supports passive, assisted, active, and isokinetic training. This allows therapists to select an appropriate training mode based on the patient's muscle strength and rehabilitation stage.
Yes. Selected models function as an Arm and Leg Trainer, allowing upper and lower limb training on the same device. AP001 and AP002 also support simultaneous arm-and-leg training for coordinated rehabilitation.
Yes. Applicable models include a wheelchair fixing hook or anti-slip device to provide stable positioning during seated rehabilitation. This makes the equipment suitable for rehabilitation centers and clinical environments serving wheelchair users.
Yes. The equipment is designed for professional rehabilitation environments, including hospital rehabilitation departments, rehabilitation centers, physical therapy clinics, and long-term care facilities. Bedside configurations are available for hospital-bed rehabilitation.
Yes. The product range is suitable for international medical equipment distributors, rehabilitation centers, hospitals, and healthcare projects. Buyers can contact Qian Jing to discuss model selection, technical specifications, quantity requirements, and other project-specific needs.
